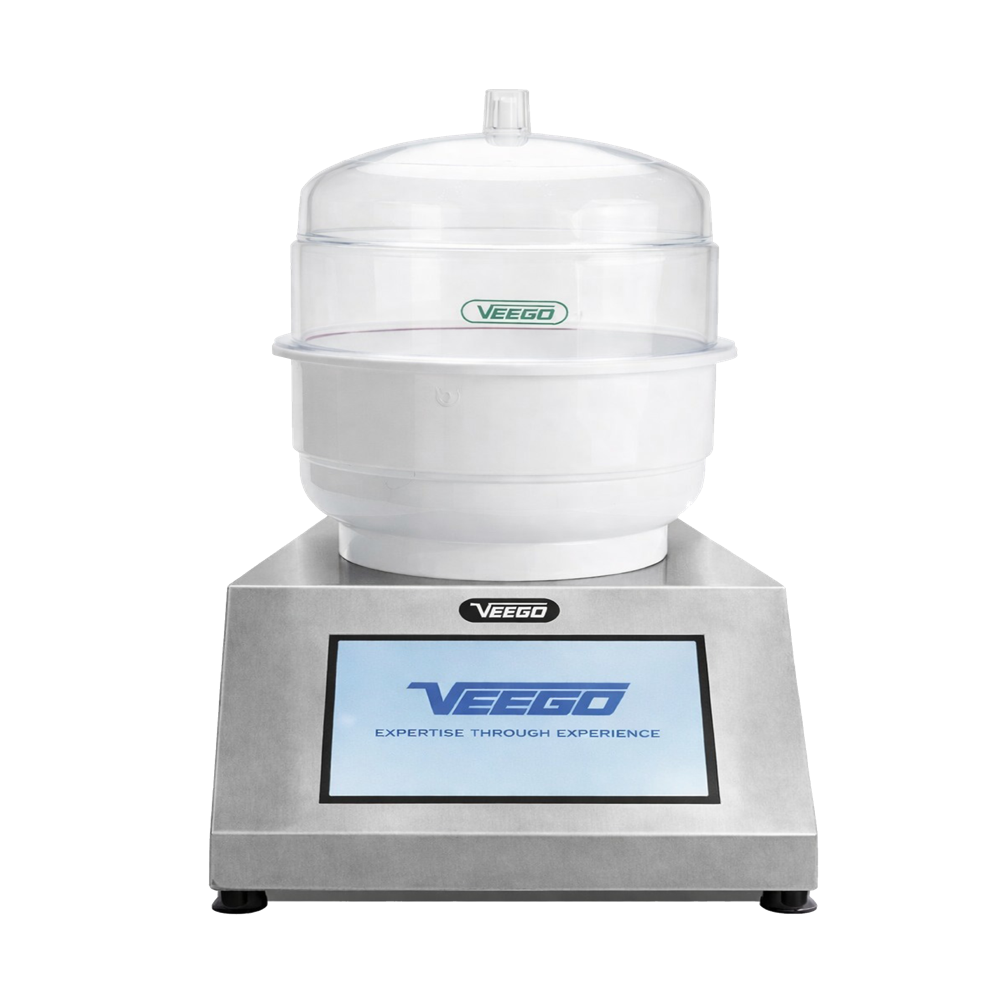

Advanced CFR Leak Test Apparatus - VLT-AD (CFT)
Advanced CFR Leak Test Apparatus - VLT-AD (CFT)

Advanced CFR Leak Test Apparatus - VLT-AD (CFT)

Price 1000.0 INR/ Piece

MOQ : 1 Piece

Advanced CFR Leak Test Apparatus - VLT-AD (CFT) Specification

  • Response Time
  • Instantaneous (<2 seconds)
  • Specimen Size
  • Fits standard CFR containers
  • Test Material
  • CFR plastics, polymers
  • Display
  • Digital touch screen
  • Test Range
  • 0 to -900 mbar
  • Number of Specimens
  • 1 per test
  • Operating Temperature
  • 10C to 40C
  • Power Supply
  • 220V, 50Hz
  • Humidity
  • Up to 80% RH
  • Sensor
  • High precision pressure sensor
  • Temperature
  • Room temperature operation
  • Gas Pressure
  • Adjustable, up to 900 mbar
  • Accuracy
  • 1 mbar
  • Type
  • Digital Leak Test Apparatus
  • Use
  • Leak testing of CFR containers
  • Test Medium
  • Air/Nitrogen
  • Operating Voltage
  • 220V AC
  • Shell Material
  • Polycarbonate chamber with stainless steel base
  • Net Weight
  • Approx. 10 kg
  • Pedestal Size
  • Suitable for CFR containers
  • Port Size
  • Standard laboratory port
  • Operating Mode
  • Automatic
  • Alarm
  • Audio/Visual fault indication
  • Footprint
  • Compact bench-top design
  • Chamber Diameter
  • Approx. 250 mm
  • Software
  • Integrated leak test analysis software
  • Maintenance
  • Minimal, easy cleaning
  • Safety Feature
  • Auto shut-off on completion
  • Data Output
  • USB/RS232
  • Calibration
  • Automatic calibration facility
  • Memory
  • Stores up to 500 test results
  • Operation
  • User-friendly interface
  • Construction
  • Corrosion-resistant materials


Advanced CFR Leak Test Apparatus - VLT-AD (CFT) Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 2 Week


About Advanced CFR Leak Test Apparatus - VLT-AD (CFT)

The VEEGO Leak Test Apparatus is a high-performance, CFR-compliant system designed for accurate and reliable
leak detection in Pharmaceutical packaging (blisters, strips, vials), Food & beverage packaging integrity testing,
Medical device packaging validation in both Production environment and Quality control laboratories.
Engineered to meet stringent regulatory standards, it ensures product integrity and compliance
with global quality requirements


Automatic, Accurate Leak Testing

With an advanced high-precision pressure sensor, the VLT-AD (CFT) provides instantaneous leak detection within a test range of 0 to -900 mbar. Its automatic calibration facility and digital touch interface deliver accurate, reliable readings for standard CFR containers, ensuring each test is both swift and consistent.


Efficient Data Management and Safety Features

Easily export and manage up to 500 stored test results using integrated USB/RS232 connectivity. Users benefit from audio/visual alarms for immediate fault indication, auto shut-off post-test, and robust construction using corrosion-resistant materials for long-lasting performance and minimal maintenance.


Designed for Laboratory Versatility

The device operates at room temperature (10C to 40C) and up to 80% humidity, requiring only a standard 220V AC supply. Its compact bench-top design fits seamlessly into most laboratory workspaces, making it an excellent choice for routine CFR container testing.

FAQ's of Advanced CFR Leak Test Apparatus - VLT-AD (CFT):


Q: How does the VLT-AD (CFT) apparatus conduct leak testing on CFR containers?

A: The VLT-AD (CFT) uses a digital, high-precision pressure sensor to create a vacuum within the testing chamber, detecting leaks by monitoring pressure loss in real time. The process is completed automatically, with results displayed instantly on a digital touch screen.

Q: What benefits does the automatic calibration feature provide?

A: Automatic calibration ensures that the apparatus delivers consistently accurate measurements for each test. This minimizes manual intervention, saves time, and enhances result reliability, especially critical in laboratory settings.

Q: When should I use the integrated leak test analysis software?

A: The integrated software should be used whenever you need to analyze, record, or export test results. It allows for efficient data handling, enabling you to review historic data, generate reports, and support further analysis directly via USB or RS232 output.

Q: Where can this leak test apparatus be installed for optimal use?

A: Due to its compact, benchtop design and robust construction, the VLT-AD (CFT) is ideal for laboratory environments where standardized leak testing of CFR containers is required. Ensure installation in areas with access to a standard 220V, 50Hz AC supply.

Q: What is the process for cleaning and maintaining the device?

A: Maintenance is minimal due to the corrosion-resistant polycarbonate and stainless steel construction. To clean, simply wipe the chamber and exterior with a soft, damp cloth; ensure the apparatus is powered off during cleaning for safety.

Q: How many tests results can be stored and how are they accessed?

A: The apparatus can store up to 500 test results internally. These results can be accessed and exported through its USB or RS232 ports using the integrated software, making record-keeping and data management straightforward for laboratory personnel.
