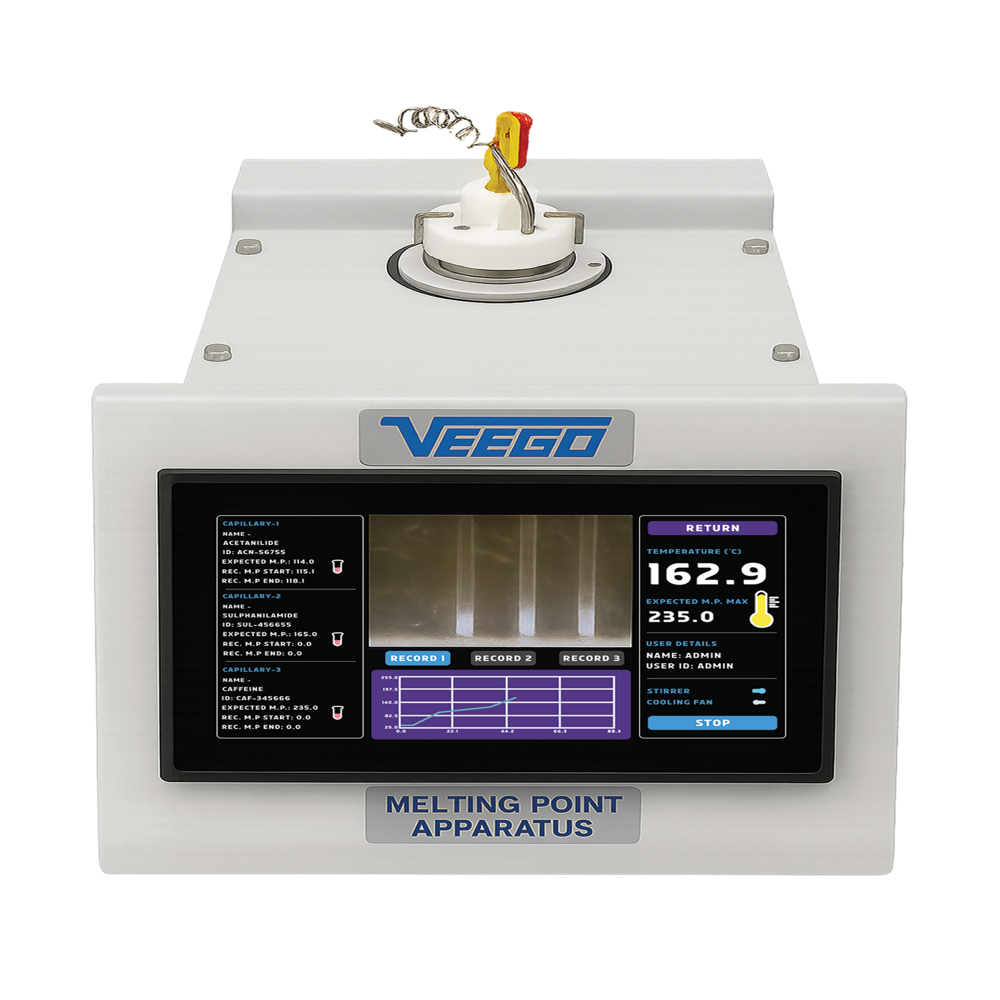

Veego Melting-Boiling Point Apparatus with Recording - VMP-ADR(T)

Send Inquiry

Request To Call Back

Veego Melting-Boiling Point Apparatus with Recording - VMP-ADR(T)

Get a Price/Quote

MOQ : 1 Set

Veego Melting-Boiling Point Apparatus with Recording - VMP-ADR(T) Specification

Automation Grade
Semi-Automatic

Operating Voltage
230V AC

Display Type
Large color touch screen display

Resolution
0.1C

Application
Determination of Melting and Boiling Points of chemical substances

Frequency
50 Hz

Humidity
Up to 85% RH (non-condensing)

Measuring Range
Ambient to 350C

Power Supply
230V 10%, 50 Hz AC

Max Height
Approx: 30 cm

Mounting Type
Bench-top

Features
Programmable operation, Data recording, Touch screen, High accuracy, Simultaneous visual and digital measurement, Data export

Test Range
Ambient to 350C

Number of Specimens
Up to 3 capillaries simultaneously

Equipment Type
Microprocessor Based Melting-Boiling Point Apparatus

Response Time
Fast response electronic sensors

Temperature
Ambient to 350C

Interface Type
USB and Printer connectivity

Specimen Size
1-2 mm powder sample in standard melting point capillary

Accuracy
0.5C

Usage
Laboratory analysis for purity testing and compound identification

Capacity
3 capillaries

Machine Weight
Approx. 8 kg

Test Speed
Programmable ramp rate (typically 0.5C/min to 10C/min)

Control Mode
Microprocessor controlled with programmable settings

Recording Option
Automatic digital record and storage of melting/boiling point data

User Access
Multiple user IDs with password protection

Cooling System
Integrated cooling fan

Heating System
Microprocessor controlled with precise ramping

Compliance
Meets pharmacopoeial standards (USP, BP, IP)

Camera Integration
High-resolution built-in camera for capillary visualization and recording

Safety Features
Over-temperature protection, User warning alerts

Material Construction
Powder-coated mild steel body

Data Logging
Comprehensive storage and retrieval of method & results

About Veego Melting-Boiling Point Apparatus with Recording - VMP-ADR(T)

Advanced Melting-Boiling Point App with Video Recording and Playback feature enabling Guided Automation of the process.

Touch screen and SBC-based design that offers superior user management, test recording, PC backup-restore and network printing facilities.

Advanced Camera Integration for Reliable Results

Equipped with a high-resolution built-in camera, this apparatus offers real-time visual monitoring and automatic video recording of the sample during melting or boiling. This feature not only improves observation accuracy but also facilitates detailed analysis through playback and permanent record-keeping. Laboratory technicians can visually and digitally confirm compound transitions, reducing subjective errors.

Robust Data Management and Secure User Access

Enjoy automatic digital recording of melting and boiling point data with comprehensive data logging. The system supports multiple user IDs with password protection, ensuring both data integrity and secure access. USB and printer connectivity further enhance data export capabilities for robust documentation and traceability, aligning with regulatory requirements in quality control and research environments.

Precise Control and Compliance for Laboratory Efficiency

Microprocessor-controlled ramping supports programmable heat rates (0.5C/min to 10C/min), allowing meticulous control from ambient to 350C. The apparatus meets major pharmacopoeial standards (USP, BP, IP) and guarantees reliable results for up to 3 capillaries per test. Over-temperature protection, automatic alerts, and up to 85% RH operating conditions ensure safety and consistent performance in demanding labs.

FAQ's of Veego Melting-Boiling Point Apparatus with Recording - VMP-ADR(T):

Q: How does the Veego VMP-ADR(T) record and store melting/boiling point data?

A: The apparatus uses built-in automation to digitally record and securely store both the temperature data and high-resolution video of melting or boiling transitions. All readings and observations can be retrieved, reviewed, and exported via USB or printer, providing complete traceability for future reference.

Q: What testing range and accuracy can I expect from this equipment?

A: This apparatus measures from ambient temperature up to 350C with an accuracy of 0.5C and a resolution of 0.1C, ensuring reliable and repeatable results even for compounds with close melting or boiling points.

Q: When should I use the camera integration feature?

A: The high-resolution camera is ideal for visualizing capillary contents during heating. It should be used whenever you need to confirm physical changes, document test results, or where traceability and digital records are required, such as in quality assurance and regulatory submissions.

Q: Where can the Veego VMP-ADR(T) be installed and operated?

A: Designed as a bench-top unit, this equipment is suitable for any laboratory environment where purity verification or compound identification is needed. It operates smoothly under standard lab conditions, including up to 85% RH (non-condensing).

Q: What steps are involved in running a typical analysis?

A: Load up to three 1-2 mm powder samples into standard melting point capillaries, insert them into the heating block, and set the desired ramp rate and parameters via the touch screen. The microprocessor manages the heating, recording, and data logging automatically, providing alerts and final results when the analysis is complete.

Q: How does the apparatus ensure safe and reliable operation during tests?

A: Safety features include built-in over-temperature protection, user warning alerts, and an integrated cooling fan to manage internal temperature. Password-protected access further restricts unauthorized use.

Q: What are the key benefits of using the Veego VMP-ADR(T) in laboratory workflows?

A: Benefits include high testing accuracy, automatic and secure data management, simultaneous visual and electronic result confirmation, regulatory compliance, reduced observer bias, fast digital response, and streamlined export of results, enhancing both the efficiency and reliability of laboratory analyses.
